CLW5110JGKZD4 - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:142
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
.
CLW5110JGKZD4 Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
CLW5110JGKZD4  Model technical parameters
Name: CLW5110JGKZD4 Exterior size(mm): 10100×2500×3800
Chassis: DFL1120B13 Container size(mm): ××
Total weight :(kg) 11050 Approach angle/ Departure angle(° ) 20/10,20/12
Payload:(kg) Front suspension/rear suspension(mm): 1430/2860,1430/2560
Kerb Mass:(kg) 10855(Kg) Max Speed(km/h): 90
Chassis parameters
Chassis: DFL1120B13 Axle weight: 4030/7020
Number of axles: 2 Fuel Type: Diesel fuel
Wheelbase(mm): 4700,5000 Fronttread(mm): 1880,1924
Max people in cab: 3 Rear tread(mm): 1800
Number of tires: 6 Number of spring axle: 7/9+6,8/10+8
Tire Type: 9.00-20,9.00R20,255/70R22.5
introduction: 该车前伸为400mm,后伸为710mm;后悬(mm)2860,2560与轴距(mm)4700,5000一一对应。防护材料:Q235A碳钢,连接方式:左右侧面及后下部防护均采用焊接连接,后部防护断面尺寸(mm):100×50,后部防护离地高度(mm):495。
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
ISDe180 40
ISDe160 40
ISDe185 40
EQH160-40
EQH180-40
ISB180 40
东风康明斯发动机有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
东风商用车有限公司
东风商用车有限公司
东风康明斯发动机有限公司
4500
4500
6700
4752
4752
5900
132
118
136
118
132
132
other parameters
Introduction:

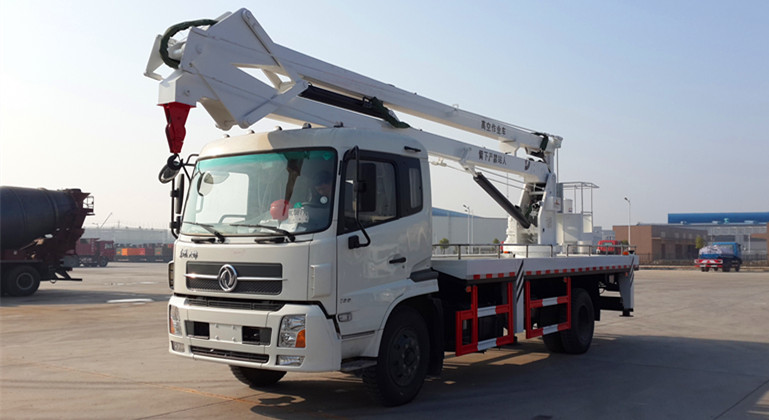

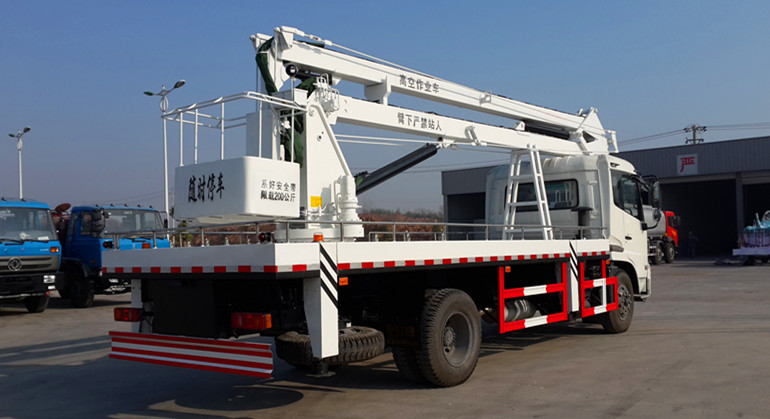

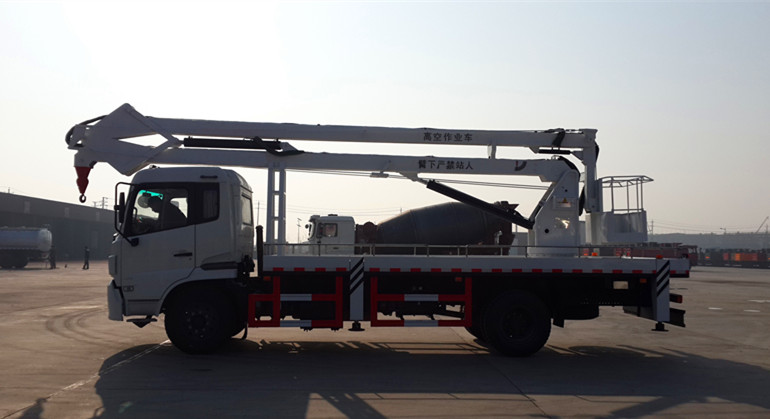

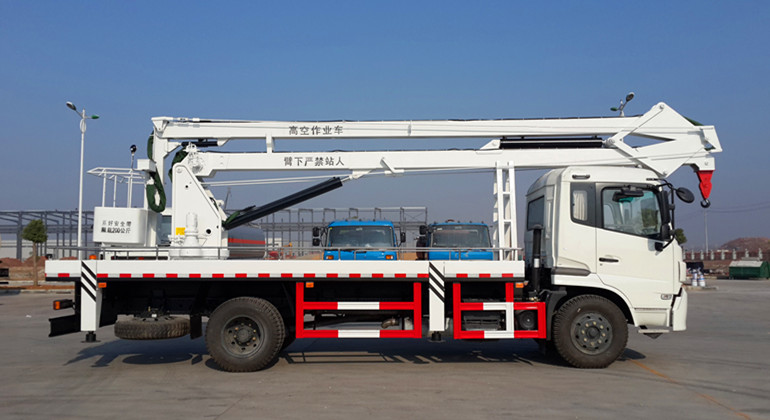

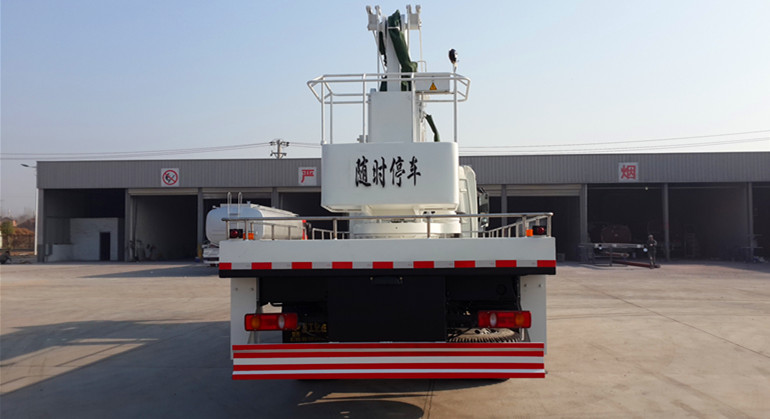

more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
