CSC5317TQZZT4 - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:145
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
.
CSC5317TQZZT4 Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
CSC5317TQZZT4  Model technical parameters
Name: CSC5317TQZZT4 Exterior size(mm): 11275,11425,11250,11400×2500×3250,3730
Chassis: ZZ1317N4667D1H Container size(mm): ××
Total weight :(kg) 31000 Approach angle/ Departure angle(° ) 16/19
Payload:(kg) Front suspension/rear suspension(mm): 1500/2000,1500/2150
Kerb Mass:(kg) 21300,22870(Kg) Max Speed(km/h): 95
Chassis parameters
Chassis: ZZ1317N4667D1H Axle weight: 6500/7000/17500(并装双轴)
Number of axles: 4 Fuel Type: Diesel fuel
Wheelbase(mm): 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 Fronttread(mm): 2022/2022,2041/2041
Max people in cab: 2,3 Rear tread(mm): 1830/1830
Number of tires: 12 Number of spring axle: 4/4/-,4/4/12,11/11/-,11/11/12
Tire Type: 315/80R22.5 16PR,295/80R22.5,12R22.5,12.00R20 16PR,12.00-20 16PR,11.00R20,11.00-20
introduction: 1、工作装置可选装,(1)选装轴距(mm)1800+4575+1400时,其外形长(mm) /后悬(mm) /整备质量(kg) /托举质量(kg)/准乘人数对应关系为:①选装16T18D上装时:11275/2000/21300/9570/2人、9505/3人;②选装20T20D上装时为11425/2150/22870/8000/2人、7935/3人。(2)选装轴距(mm)1800+4600+1350时,其外形长(mm) /后悬(mm) /整备质量(kg) /托举质量(kg)/准乘人数对应关系为:①选装16T18D上装时:11250/2000/21300/9570/2人、9505/3人;②选装20T20D上装时为11400/2150/22870/8000/2人、7935/3人。2、侧、后防护由专用结构替代,钢板/Q235,焊接,后部托举装置下缘离地高500mm。3、选装高顶驾驶室时外形高为3730mm,选装不同颜色的驾驶室及外观。ABS型号及厂家:4460046300/威伯科汽车控制系统(中国)有限公司。
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
D10.34-40
D10.38-40
D12.34-40
D12.38-40
中国重型汽车集团有限公司
中国重型汽车集团有限公司
中国重型汽车集团有限公司
中国重型汽车集团有限公司
9726
9726
11596
11596
249
276
249
279
other parameters
Introduction:

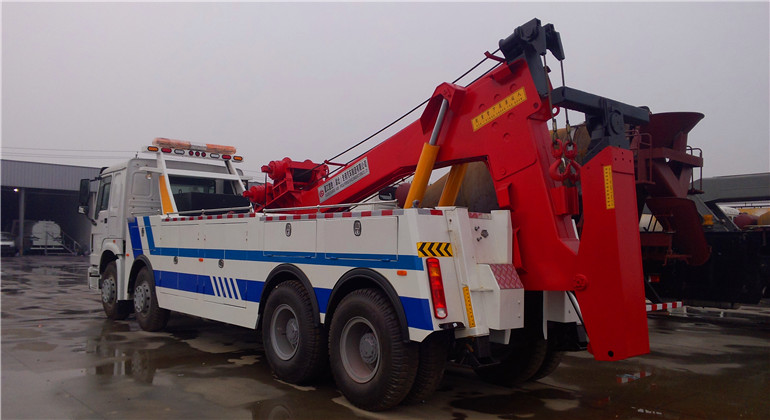

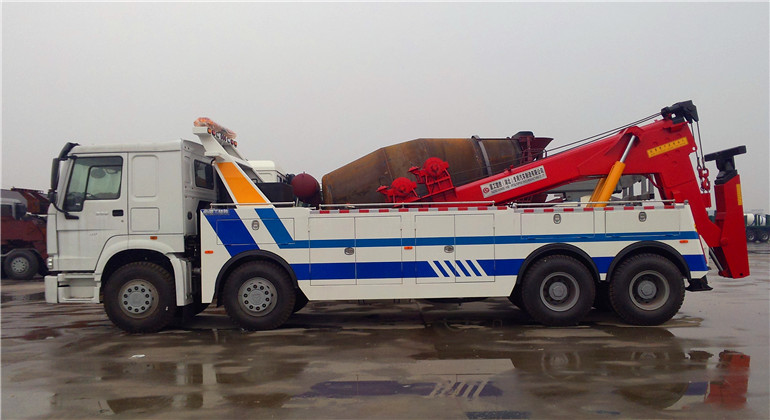

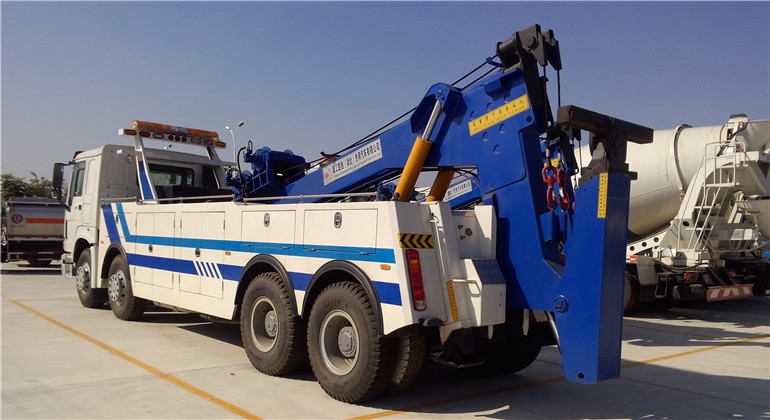

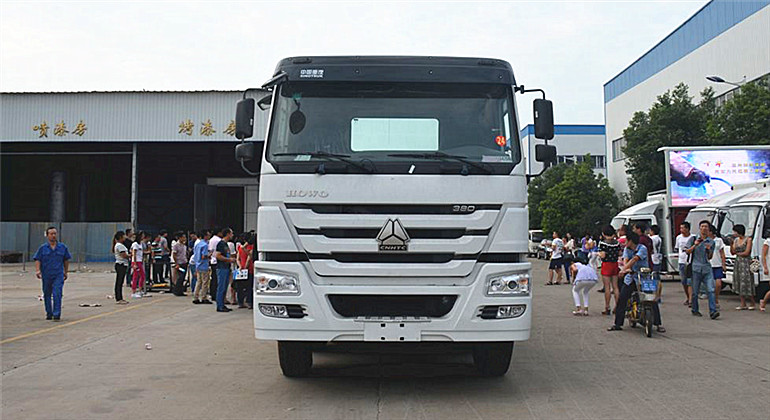

more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
