SCS5040JSQEQ - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:412
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
.
SCS5040JSQEQ Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
SCS5040JSQEQ  Model technical parameters
Name: SCS5040JSQEQ Exterior size(mm): 5995×1980,2320×3200,3470
Chassis: EQ1041SJ8GDF Container size(mm): 3400×1880,2150×400,550
Total weight :(kg) 4495 Approach angle/ Departure angle(° ) 24/19
Payload:(kg) 630 Front suspension/rear suspension(mm): 1148/1547,1205/1490
Kerb Mass:(kg) 3670(Kg) Max Speed(km/h): 105
Chassis parameters
Chassis: EQ1041SJ8GDF Axle weight: 1800/2695
Number of axles: 2 Fuel Type: Diesel fuel
Wheelbase(mm): 3300 Fronttread(mm): 1769,1750
Max people in cab: 3 Rear tread(mm): 1654,1586,1602
Number of tires: 6 Number of spring axle: 8/10+7
Tire Type: 8.25R16 6PR,8.25-16 6PR,7.50R16 8PR
introduction: 可选装直臂式或折臂式吊机,直臂式吊机:型号/吊机质量(kg)/最大起升载荷(kg)分别为:(SQ2SK,URV200,nicoleV200)/1100/780; (SQ3.2SK,URV320,nicoleV320)/1105/700;折臂式吊机的分别为:(SQ2Z,QYS-2Z)/1100/780;(SQ3.2Z,QYS-3.2Z)/1105/700.随底盘选装驾驶室;外观颜色可变化,箱体外观可变化.侧、后防护采用碳钢/Q235B,焊接连接。后防护截面尺寸(宽×高) (mm):100×50,离地高480mm。ABS型号:ABS/ASR-24V-4S/4M,厂家:襄阳东风隆诚机械有限责任公司。
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
YN38CRE1
4DX23-140E5
4DX23S-120E5
昆明云内动力股份有限公司
一汽解放汽车有限公司无锡柴油机厂
一汽解放汽车有限公司无锡柴油机厂
3760
3857
3857
95
105
90
other parameters
Introduction:

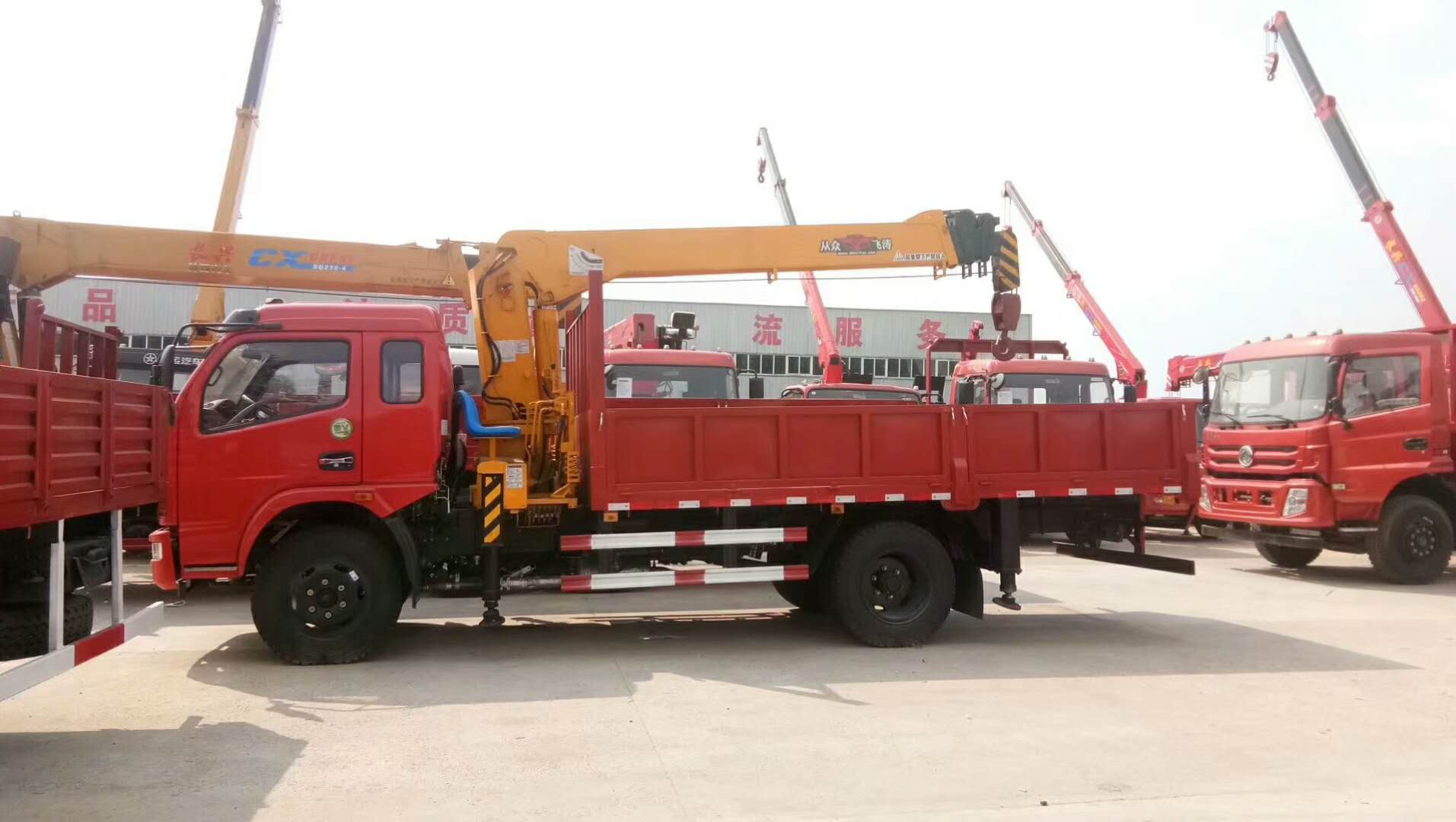

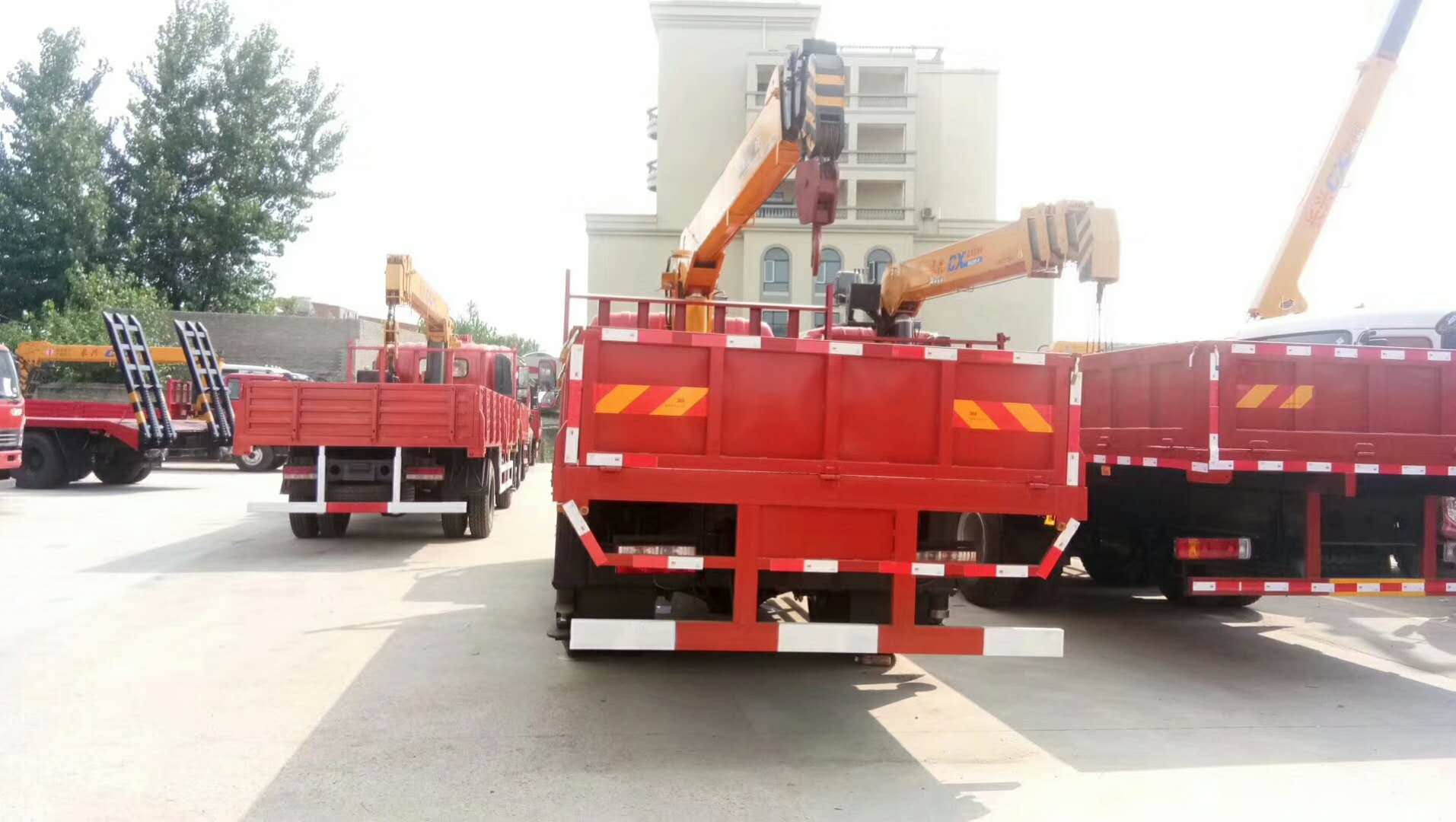

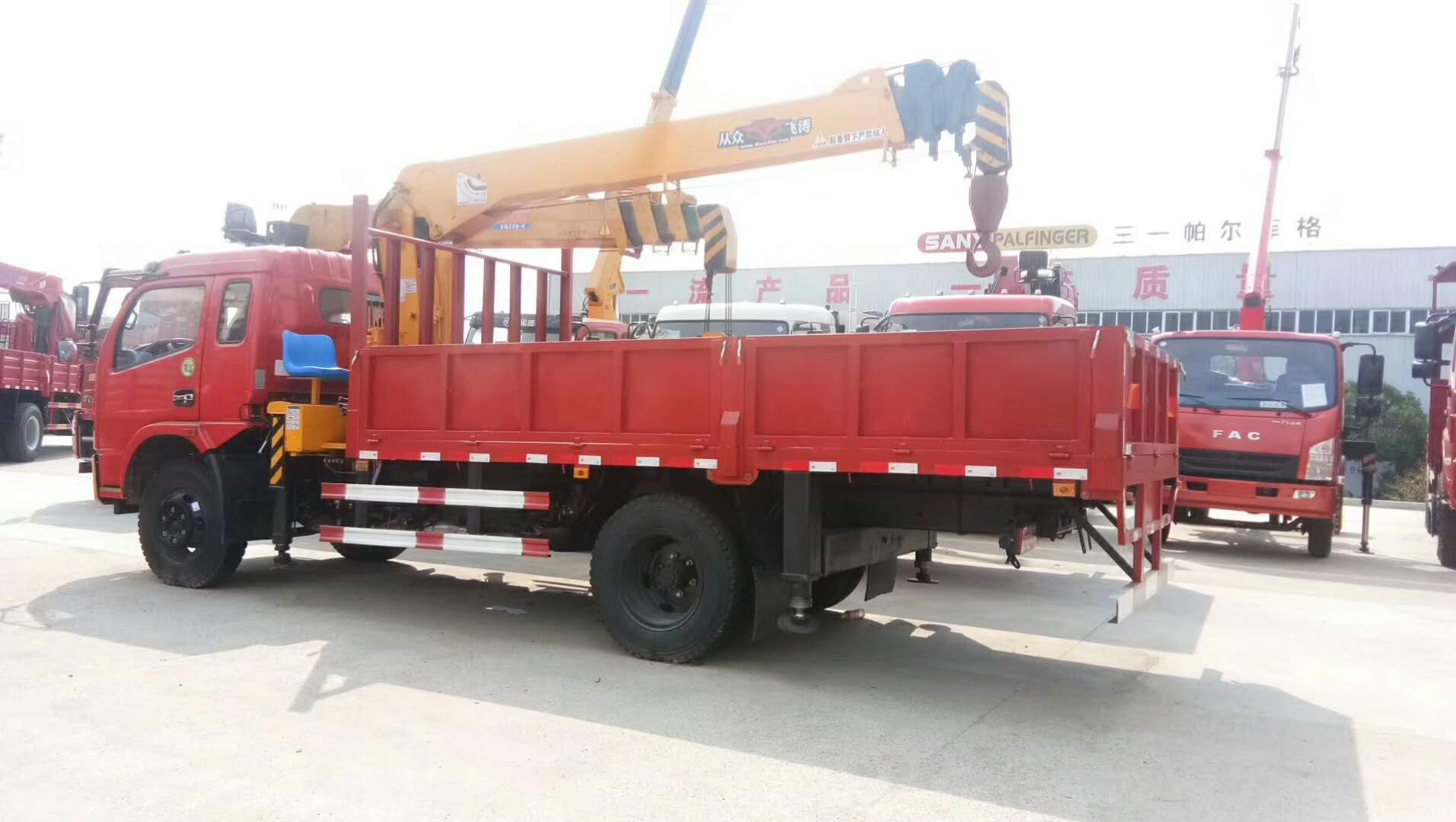

more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
