CLW5250XLCD4 - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:122
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
.
CLW5250XLCD4 Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
CLW5250XLCD4  Model technical parameters
Name: CLW5250XLCD4 Exterior size(mm): 11990×2550×3990
Chassis: DFL1253AX1A Container size(mm): 9500×2300×2400
Total weight :(kg) 25000 Approach angle/ Departure angle(° ) 30/8
Payload:(kg) 13000,12935 Front suspension/rear suspension(mm): 1460/3230
Kerb Mass:(kg) 11870(Kg) Max Speed(km/h): 90
Chassis parameters
Chassis: DFL1253AX1A Axle weight: 7000/7000/11000
Number of axles: 3 Fuel Type: Diesel fuel
Wheelbase(mm): 1950+5350,1850+5450 Fronttread(mm): 1980/1980,2040/2040,2015/2015
Max people in cab: 2,3 Rear tread(mm): 1860
Number of tires: 8 Number of spring axle: 8/8/9+9,9/9/9+3,9/9/10+3,3/3/4+3,3/3/9+3,3/3/10+3
Tire Type: 295/80 R22.5,11.00-20,11.00R20
introduction: 厢体顶部封闭,不可开启。驾驶室准乘人数(人):2,3与额定载质量(kg):12500,12435一一对应。选装侧面双门厢体及不带侧门厢体;随底盘选装驾驶室。防护材料:Q235A碳钢,连接方式:左右侧面及后下部防护装置采用焊接连接,后部防护断面尺寸(mm):150×50×5,后部防护离地高度(mm):520。该车应装行驶记录仪。ABS型号及厂家:4460046440、威伯科汽车控制系统(中国)有限公司
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
ISDe210 40
ISDe230 40
ISDe245 40
ISC8.3-230E40A
ISC8.3-245E40A
ISB220 40
ISDe270 40
东风康明斯发动机有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
6700
6700
6700
8300
8300
5900
6700
155
169
180
169
180
162
198
other parameters
Introduction:

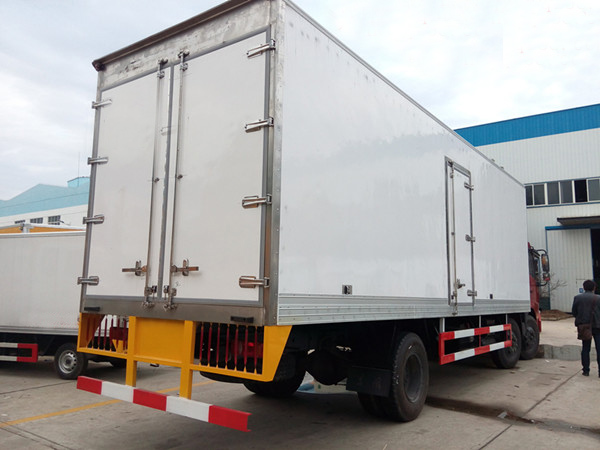

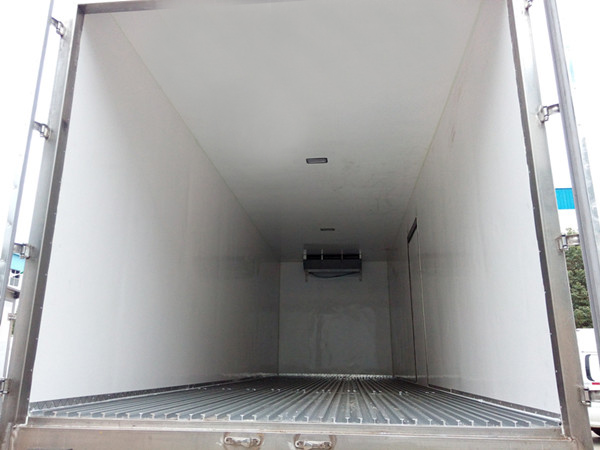

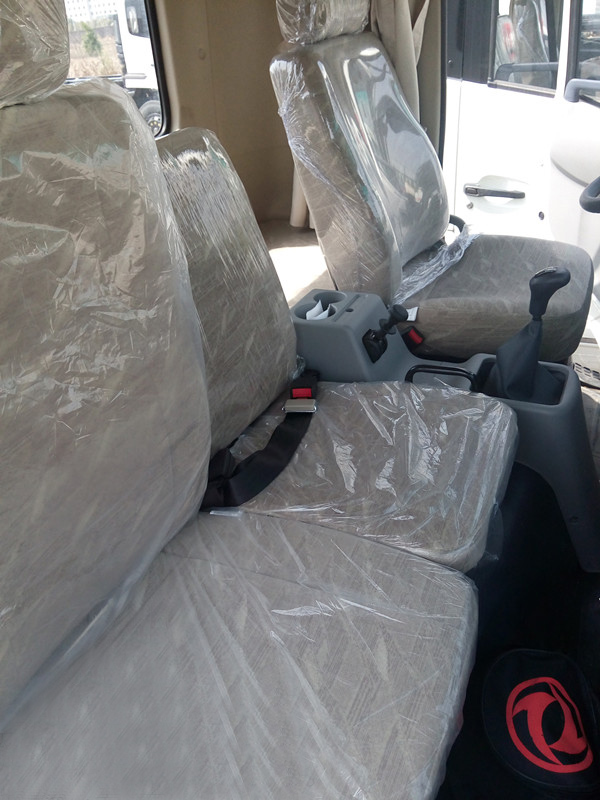

more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
